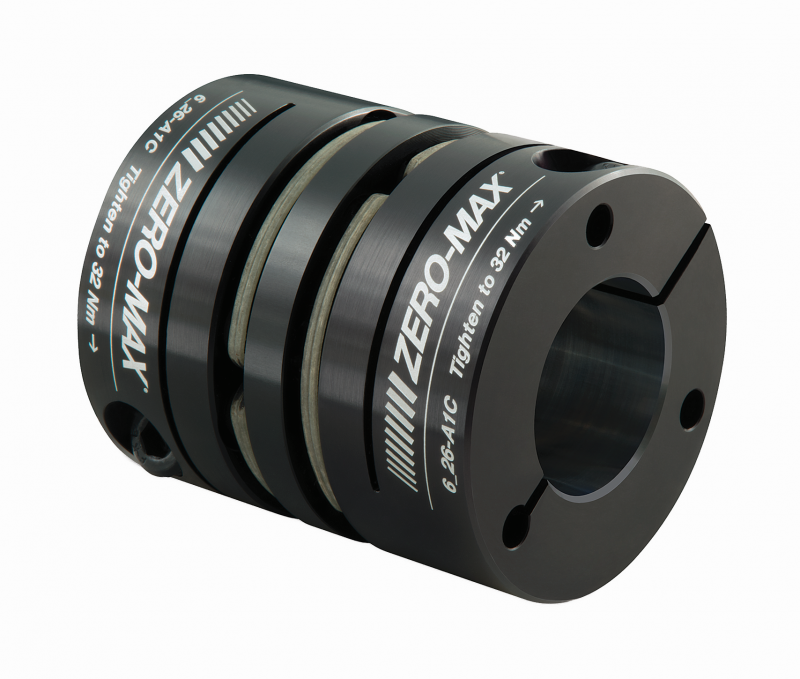

Double Clamp Aluminum A1C Hubs
Part Number: 6P18-A1C
Specifications
Click for English
Click for Metric
- Continuous Rated Torque: 180 in-lbs
- Continuous Rated Torque : 20 Nm
- Peak Rated Torque: 360 in-lbs
- Peak Rated Torque : 40 Nm
- Minimum Bore (E): 0.375 inches
- Minimum Bore (E) : 8 mm
- Maximum Bore (E): 1.000 inches
- Maximum Bore (E) : 26 mm
- Maximum Speed: 15,000 RPM
- Torsional Stiffness: 850 In-lbs/degree
- Torsional Stiffness : 5,500 Nm/rad
- Parallel Misalignment: 0.017 inches
- Parallel Misalignment : 0.43 mm
- Angular Misalignment: 2 °
- Axial Misalignment: 0.063 inches
- Axial Misalignment : 1.6 mm
- Weight at Max Bore: 0.55 lbs
- Weight at Max Bore : 0.25 kg
- Weight at Min Bore: 0.66 lbs
- Weight at Min Bore : 0.30 kg
- Inertia at Max Bore: 1.03 lb-in²
- Inertia at Max Bore : 3.0 kg-cm²
- Inertia at Min Bore: 0.38 lb-in²
- Inertia at Min Bore : 1.1 kg-cm²
- Outside Diameter (A): 2.09 inches
- Outside Diameter (A) : 53.0 mm
- Overall Length (L): 2.48 inches
- Overall Length (L) : 63.0 mm
- Hub Length (B): 0.886 inches
- Hub Length (B) : 22.5 mm
- Distance Between Shaft Ends (C): 0.71 inches
- Distance Between Shaft Ends (C) : 18.0 mm
- Inside Diameter of Disc-Pack (H): 0.79 inches
- Inside Diameter of Disc-Pack (H) : 20.1 mm
- Clamp Screw to Bore (R): 0.71 inches
- Clamp Screw to Bore (R) : 18.0 mm
- Clamp Screw to End of Hub (G): 0.29 inches
- Clamp Screw to End of Hub (G) : 7.2 mm
- Clamp Bolt Size (D): M6
- Tightening Torque (D): 115 in-lbs
- Tightening Torque (D) : 13 Nm
| Double Clamp Type Aluminum A1C Hubs 6p18-a1c Configuration |
| Bore Size D1 |
|
| d1 Keyway Option |
|
| Bore Size D2 |
|
| d2 Keyway Option |
|
Double Clamp Aluminum A1C Hubs
Part Number: 6P18-A1C
Double Clamp Aluminum A1C Hubs 6P18-A1C Specifications
Click for English
Click for Metric
| Part Number | 6P18-A1C |
| Continuous Rated Torque: | 180 in-lbs |
| Continuous Rated Torque : | 20 Nm |
| Peak Rated Torque: | 360 in-lbs |
| Peak Rated Torque : | 40 Nm |
| Minimum Bore (E): | 0.375 inches |
| Minimum Bore (E) : | 8 mm |
| Maximum Bore (E): | 1.000 inches |
| Maximum Bore (E) : | 26 mm |
| Maximum Speed: | 15,000 RPM |
| Torsional Stiffness: | 850 In-lbs/degree |
| Torsional Stiffness : | 5,500 Nm/rad |
| Parallel Misalignment: | 0.017 inches |
| Parallel Misalignment : | 0.43 mm |
| Angular Misalignment: | 2 ° |
| Axial Misalignment: | 0.063 inches |
| Axial Misalignment : | 1.6 mm |
| Weight at Max Bore: | 0.55 lbs |
| Weight at Max Bore : | 0.25 kg |
| Weight at Min Bore: | 0.66 lbs |
| Weight at Min Bore : | 0.30 kg |
| Inertia at Max Bore: | 1.03 lb-in² |
| Inertia at Max Bore : | 3.0 kg-cm² |
| Inertia at Min Bore: | 0.38 lb-in² |
| Inertia at Min Bore : | 1.1 kg-cm² |
| Outside Diameter (A): | 2.09 inches |
| Outside Diameter (A) : | 53.0 mm |
| Overall Length (L): | 2.48 inches |
| Overall Length (L) : | 63.0 mm |
| Hub Length (B): | 0.886 inches |
| Hub Length (B) : | 22.5 mm |
| Distance Between Shaft Ends (C): | 0.71 inches |
| Distance Between Shaft Ends (C) : | 18.0 mm |
| Inside Diameter of Disc-Pack (H): | 0.79 inches |
| Inside Diameter of Disc-Pack (H) : | 20.1 mm |
| Clamp Screw to Bore (R): | 0.71 inches |
| Clamp Screw to Bore (R) : | 18.0 mm |
| Clamp Screw to End of Hub (G): | 0.29 inches |
| Clamp Screw to End of Hub (G) : | 7.2 mm |
| Clamp Bolt Size (D): | M6 |
| Tightening Torque (D): | 115 in-lbs |
| Tightening Torque (D) : | 13 Nm |
