H-TLC Torque Limiters
Part Number: H-TLC-1000-BD
Specifications
Click for English
Click for Metric
- Torque Range: 40 - 500 in-lbs
- Torque Range : 4.5 - 56.5 Nm
- Minimum Bore: 0.500 inches
- Minimum Bore : 13 mm
- Max Shaft Bore (C): 1.125 inches
- Max Shaft Bore (C) : 28 mm
- Outside Diameter (A): 3.200 inches
- Outside Diameter (A) : 81.28 mm
- Overall Length (K): 3.450 inches
- Overall Length (K) : 87.63 mm
- Dimension (B): 2.370 inches
- Dimension (B) : 60.20 mm
- Dimension (D): 2.230 inches
- Dimension (D) : 56.64 mm
- Dimension (E): 1.210 inches
- Dimension (E) : 30.73 mm
- Dimension (G): 2.220 inches
- Dimension (G) : 56.39 mm
- Dimension (H): 0.315 inches
- Dimension (H) : 8.00 mm
- Dimension (H1): 1.625 inches
- Dimension (H1) : 41.28 mm
- Dimension (I): 0.520 inches
- Dimension (I) : 13.21 mm
- Dimension (J): 1.810 inches
- Dimension (J) : 45.97 mm
- Dimension (L): 1.12 inches
- Dimension (L) : 28.45 mm
- Dimension (M): 0.400 inches
- Dimension (M) : 10.16 mm
- Bolt Circle (Q): 1.687 inches
- Bolt Circle (Q) : 42.85 mm
- Thread Size (R): 5/16"-18 x 3/4" Deep
- Thread Size (R) : 5/16"-18 x 19 mm Deep
- Disc Diameter (X): 4.040 inches
- Disc Diameter (X) : 102.62 mm
- Dimension (Z): 3.270 inches
- Dimension (Z) : 3.270 inches
- Dimension (Z1): 3.110 inches
- Dimension (Z1) : 3.270 inches
- Weight: 1.0 lbs
- Weight : 0.45 kg

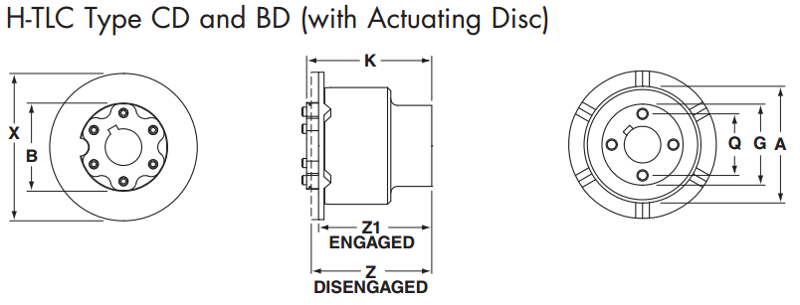

| H-TLC Torque Limiters h-tlc-1000-bd Configuration | |
| C Bore | |
