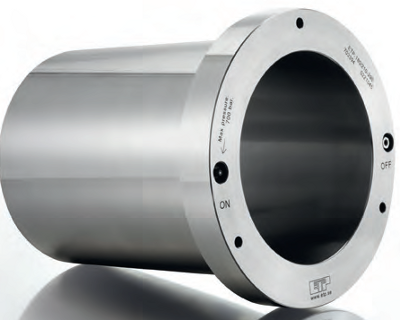

ETP-HP240 Hydropress Keyless Shaft Bushings

Part Number: ETP-HP240

Quantity:

Specifications
  • Transmittable T: 8,850 ft-lbs
  • Transmittable FA: 19,625 lbf
  • Shaft Bore Diameter (d): 240 mm
  • Shaft Tolerance Grade: h7
  • Sleeve Diameter (D): 275 mm
  • Hub Bore Tolerance Grade: H7
  • Sleeve Length (L): 205 mm
  • Overall Length (L1): 240 mm
  • Flange Diameter (D1): 319 mm
  • Dimension (D2): 287 mm
