G-22-C Posi-Lok Keyless Shaft Bushings

Part Number: PSL-G-22-C

Specifications

Transmittable T: 247 ft-lbs
Transmittable FA: 6,857 lbf
Shaft Bore Diameter (d): 22 mm
Shaft Tolerance Grade: h9
Shaft Contact Pressure: 31,328 PSI
Outside Diameter (D): 47 mm
Hub Bore Tolerance Grade: H8
Hub Contact Pressure: 14,649 PSI
Sleeve Length (ℓ): 17 mm
Body Length (L): 20 mm
Overall Length (L1): 26 mm
Weight: 0.44 lb
Polar Moment of Inertia: 16 x10⁻⁴ lb-ft²
Actuation Screws (M1): M6 x 18
Screws No.: 8
Tightening Torque: 150 in-lb
Detachment Screw Hole (M2): 2-M8

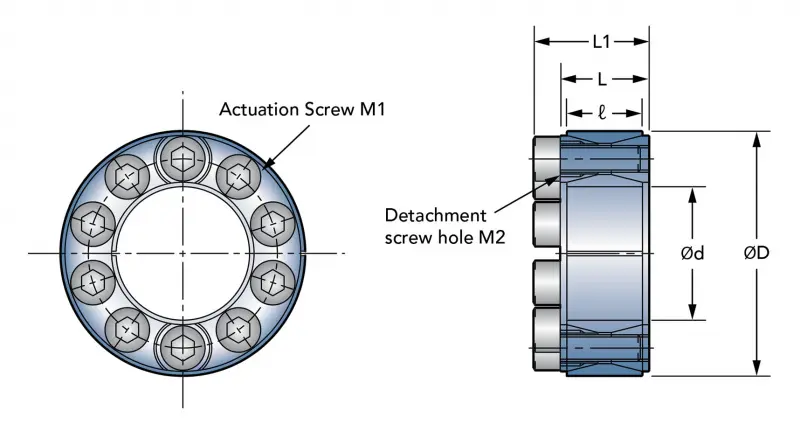

Zero-Max-Posi-Lok-PSL-G-C_illustrations

Adobe 3D PDF help

Technical Resources

G-22-C Posi-Lok Keyless Shaft Bushings PSL-G-22-C Specifications

Part Number	PSL-G-22-C
Transmittable T:	247 ft-lbs
Transmittable FA:	6,857 lbf
Shaft Bore Diameter (d):	22 mm
Shaft Tolerance Grade:	h9
Shaft Contact Pressure:	31,328 PSI
Outside Diameter (D):	47 mm
Hub Bore Tolerance Grade:	H8
Hub Contact Pressure:	14,649 PSI
Sleeve Length (ℓ):	17 mm
Body Length (L):	20 mm
Overall Length (L1):	26 mm
Weight:	0.44 lb
Polar Moment of Inertia:	16 x10⁻⁴ lb-ft²
Actuation Screws (M1):	M6 x 18
Screws No.:	8
Tightening Torque:	150 in-lb
Detachment Screw Hole (M2):	2-M8
