K-18-B Posi-Lok Keyless Shaft Bushings

Part Number: PSL-K-18-B

Quantity:

Specifications
  • Transmittable T: 81 ft-lbs
  • Transmittable FA: 2,855 lbf
  • Shaft Bore Diameter (d): 18 mm
  • Shaft Tolerance Grade: h8
  • Shaft Contact Pressure: 34,809 PSI
  • Sleeve Diameter (D): 26 mm
  • Hub Bore Tolerance Grade: H7
  • Hub Contact Pressure: 24,656 PSI
  • Sleeve Length (L): 14 mm
  • Body Length (L1): 29 mm
  • Overall Length (L2): 33.5 mm
  • Upper Flange Length (L3): 6 mm
  • Lower Flange Length (L4): 7 mm
  • Upper Flange Diameter (D1): 42 mm
  • Lower Flange Diameter (D2): 39 mm
  • Bolt Circle (P): 32 mm
  • Weight: 0.31 lb
  • Polar Moment of Inertia: 75.9 x10⁻⁵ lb-ft²
  • Actuation Screws (M1): M5 x 12
  • Screws No.: 4
  • Tightening Torque: 71 in-lb
  • Detachment Screw Hole (M2): 2-M5

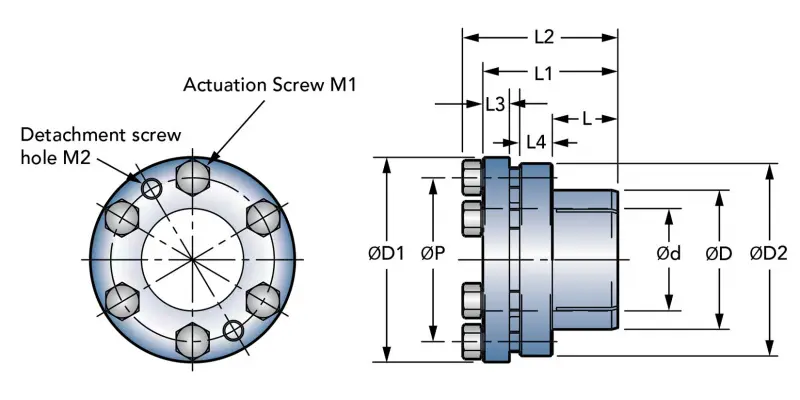

Zero-Max-Posi-Lok-PSL-K-B_illustrations
