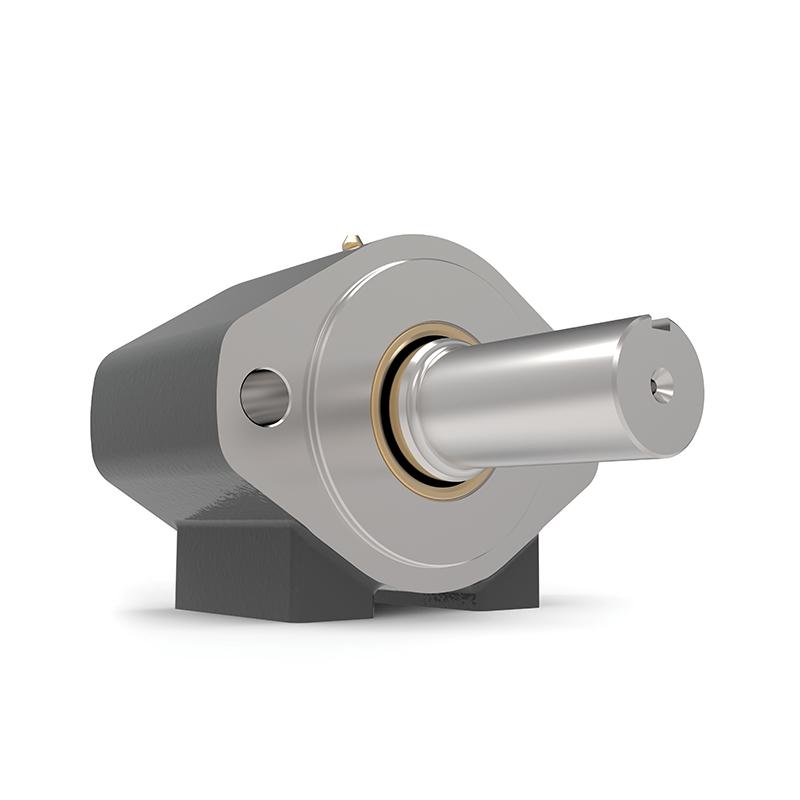

Model 212k SAE A Mount Overhung Load Adaptors
Part Number: 212k (-DP)
Specifications
Click for English
Click for Metric

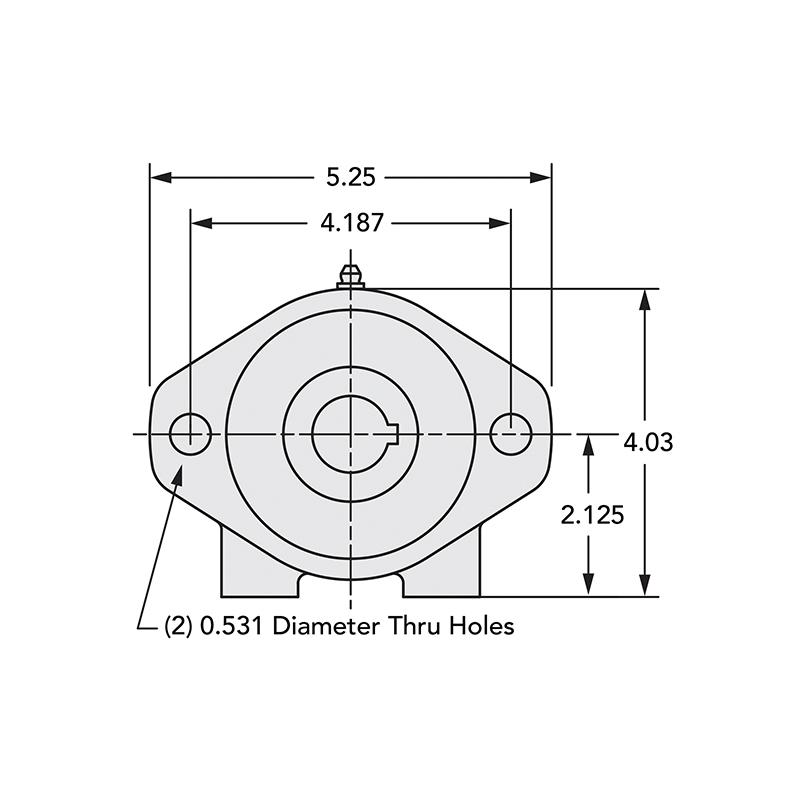

- Input Standard: SAE A 2-Bolt Mount
- Input Bore: 1" with keyway (1/4" x 1/8")
- Input Bore : 25.4mm with keyway (6.35mm x 3.18mm)
- Input Bore Depth: 2.31"
- Input Bore Depth : 58.67 mm

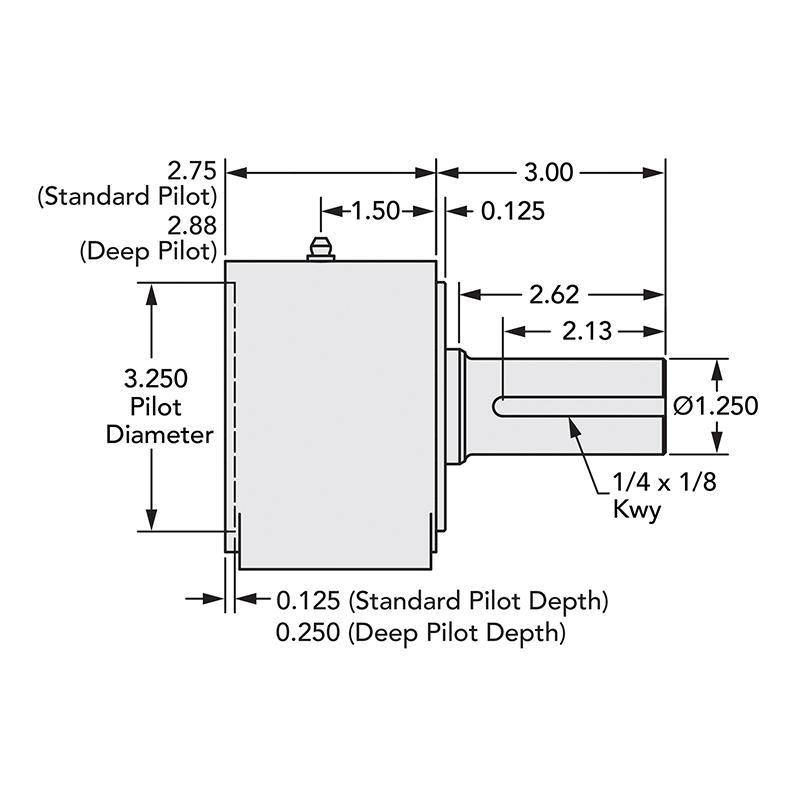

- Output Shaft: 1-1/4" with keyway (1/4" x 1/8")
- Output Shaft : 31.75mm with keyway (6.35mm x 3.18mm)
- Output Shaft Length: 2.87"
- Output Shaft Length : 72.9 mm
- Input Pilot Diameter: 3.250"
- Input Pilot Diameter : 82.55 mm
- Input Pilot Depth: 0.125" (std); 0.250" (deep)
- Input Pilot Depth : 3.18mm (std); 6.25mm (deep)

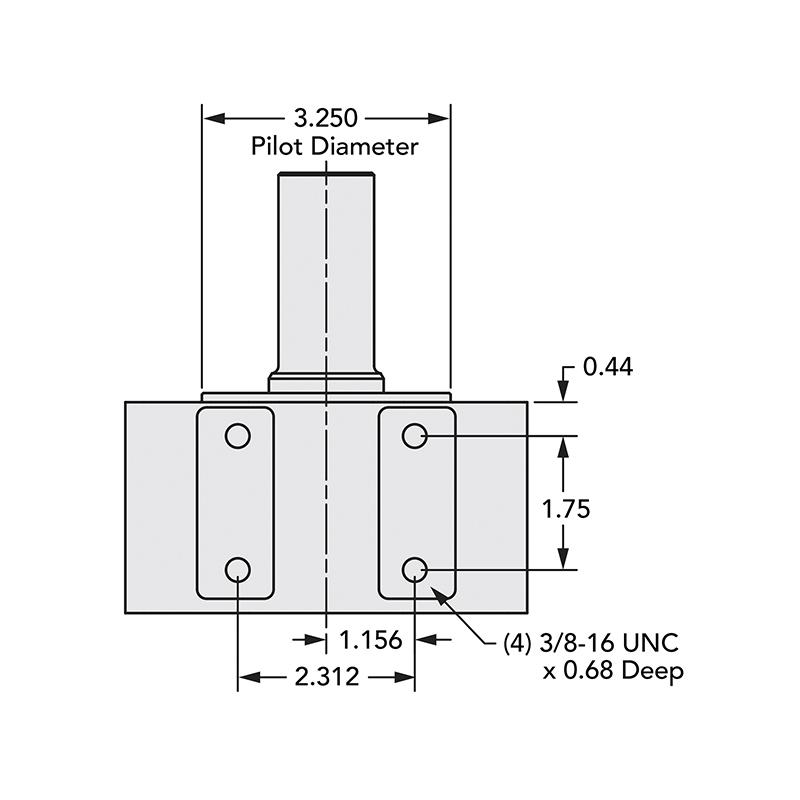

- Output Pilot Diameter: 3.250"
- Output Pilot Diameter : 82.55 mm
- Output Pilot Height: 0.120"
- Output Pilot Height : 3.05 mm
- Max Speed (w/o modification): 3,800 RPM
- Housing Material: Cast Iron
- Shaft Material: 1144 Stressproof Steel
- Bearing Type (std): Deep Groove Ball Bearings
- Standard Lubrication Method: Grease
- Optional Lubrication Methods: Contact Factory
- Rec. Grease (typical app.): NLGI #2; Lithium Base
- Minimum Grease Capacity: 0.5 oz.
- Maximum Grease Capacity: 1.0 oz.
- Grease Fitting: (1) Zerk Fitting (press-fit)
- Unit Weight: 10 lbs
- Unit Weight : 4.5 kg
- Standard Mounting Orientation: Shaft Horizontal - Consult Factory for other Mounting Orientations
| Model 200 SAE A Mount Overhung Load Adaptors 212k Configuration | |
| Pilot Depth | |
